‹ Home › Inventory › 2017 R 1200 GS

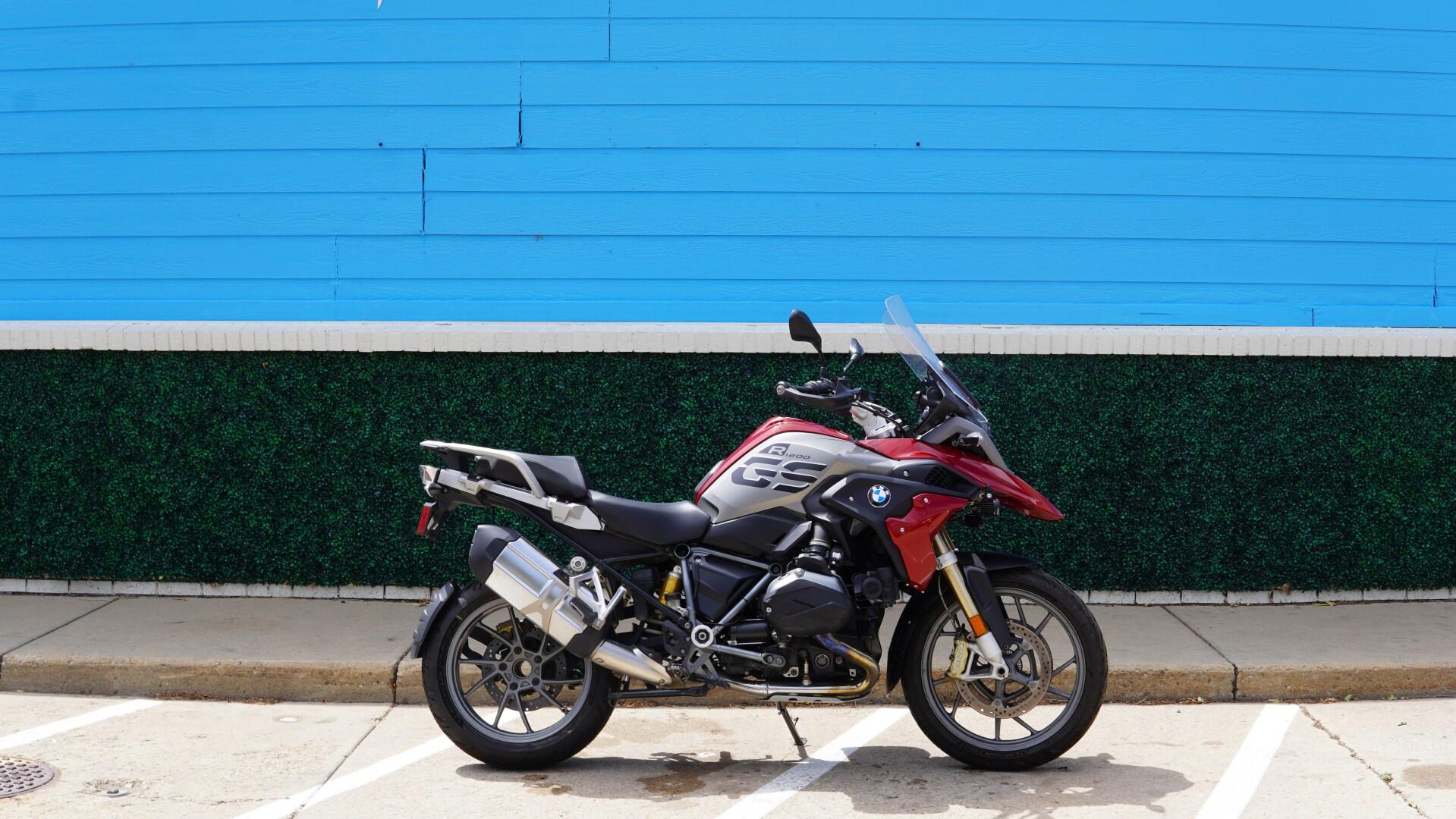

The 2017 BMW R 1200 GS stands as a benchmark in the open-class adventure touring segment, striking an exceptional balance between transcontinental highway comfort and rugged off-road capability. At its core is a refined 1,170cc air/liquid-cooled boxer twin engine that pumps out 125 horsepower and a robust 92 lb-ft of torque via a smooth, shaft-driven system. The 2017 mid-generation update introduces Euro 4 compliance along with vital drivetrain revisions, including a transmission judder damper for significantly smoother gear shifts. Tech-focused riders benefit from advanced factory options like the "Next Generation" Dynamic ESA electronic suspension, which offers automated self-leveling to compensate for luggage or passenger weight. Safety is optimized through premium rider aids, including lean-sensitive traction control and cornering ABS Pro that maintain stability during mid-turn braking. Ultimately, this iteration perfected the legendary GS formula, cementing its status as an unstoppable, highly sophisticated globetrotter.

Specifications

ENGINE

add remove
- Engine:

  Standard
- Engine Type:

  Flat Twin
- Cylinders:

  2
- Engine Stroke:

  4-Stroke
- Horsepower (bhp):

  125
- Horsepower (kW):

  92
- Horsepower RPM:

  7750
- Torque (Ft Lbs):

  92
- Torque (Nm):

  125
- Torque RPM:

  6500
- Cooling:

  Liquid / Air
- Valves:

  8
- Valves Per Cylinder:

  4
- Valve Configuration:

  DOHC
- Bore (mm):

  101
- Bore (in):

  3.98
- Stroke (mm):

  73
- Stroke (in):

  2.87
- Displacement (cc):

  1170
- Displacement (ci):

  71.4
- Turbocharged:

  No
- Supercharged:

  No
- Starter:

  Electric
- Fuel Type:

  Gas
- Fuel Requirements:

  Premium
- Carburetion:

  Standard
- Fuel Injector:

  Yes
- Carburetor:

  No
- Carburetion Type:

  Fuel Injected
- Parental Controls:

  Not Available
- Fuel Injector Size (mm):

  52
- Other Engine:

  Optional
- Compression ratio:

  12.5:1
TRANSMISSION

add remove
- Transmission:

  Standard
- Transmission Type:

  Manual
- Number Of Speeds:

  6
- Overdrive:

  Yes
- Primary Drive (Rear Wheel):

  Shaft
- Gear Ratio (1):

  2.44
- Gear Ratio (2):

  1.71
- Gear Ratio (3):

  1.3
- Gear Ratio (4):

  1.06
- Gear Ratio (5):

  0.94
- Gear Ratio (6):

  0.85
- Reverse:

  No
- Final Drive Ratio:

  2.91
- Heel Toe Shifter:

  Not Available
- Adjustable Throttle:

  Not Available
- Other Transmission:

  Optional
TECHNICAL SPECIFICATIONS

add remove
- Dimensions:

  Standard
- Length (in):

  86.9
- Length (mm):

  2207
- Width (in):

  37.5
- Width (mm):

  953
- Wheelbase (in):

  59.3
- Wheelbase (mm):

  1507
- Weight:

  Standard
- Wet Weight (lbs):

  537.9
- Wet Weight (kg):

  244
- Capacities:

  Standard
- Fuel Capacity (gal):

  5.3
- Fuel Capacity (l):

  20
- Fuel Capacity Reserve (gal):

  1
- Fuel Capacity Reserve (l):

  4
- Performance:

  Standard
- Payload Capacity (lbs):

  1014.1
- Payload Capacity (kgs):

  460
EXTERIOR

add remove
- Construction:

  Standard
- Frame:

  Steel
- Body Material:

  Plastic
- Floor Boards:

  Not Available
- Foot Pegs:

  Standard
- Foot Peg Location:

  Driver and Passenger
- Hand Grips:

  Standard
- Handlebars:

  Standard
- Exterior Guards:

  Standard
- Belt Guard:

  No
- Brush Guard:

  No
- Chain Guard:

  No
- Fork Guards:

  Yes
- Light Guard:

  No
- Exterior Covers:

  Standard
- Front Fender:

  Standard
- Front Fender Trim:

  Not Available
- Front Fender Rail:

  Not Available
- Rear Fender:

  Standard
- Rear Fender Trim:

  Not Available
- Rear Fender Rail:

  Not Available
- Tank Divider:

  Not Available
- Stand:

  Standard
- Stand Type:

  Center / Kick
- Upper Fairing:

  Not Available
- Lower Fairing:

  Not Available
- Spoiler:

  Not Available
- Skid Plate:

  Standard
- Wind Deflector:

  Not Available
- License Plate:

  Standard
- Other Exterior:

  Not Available
- Top Crown:

  Standard
- Engine Case Guard:

  Yes
- Chassis Protectors:

  No
- Saddle Bag Guard:

  No
- Radiator Cover:

  Yes
- Tank Guard:

  Yes
SUSPENSION

add remove
- Front Suspension:

  Standard
- Front Suspension Brand Name:

  Telelever
- Front Suspension Type:

  Telescopic Fork
- Front Travel (in):

  7.5
- Front Travel (mm):

  190
- Front Adjustable Fork Pre-Load:

  Yes
- Front Adjustable Rebound Damping:

  Yes
- Front Central Suspension Strut:

  Yes
- Steering Damper:

  Yes
- Rear Suspension:

  Standard
- Rear Suspension Brand Name:

  Paralever
- Rear Suspension Type:

  Single Sided Swing Arm
- Rear Travel (in):

  7.9
- Rear Travel (mm):

  200
- Rear Adjustable Shock / Spring Pre-Load:

  Yes
- Rear Adjustable Rebound Damping:

  Yes
- Number Rear Shock Absorbers:

  1
- Air Adjustable:

  No
- Other Suspension:

  Optional
- Rear Suspension Material:

  Aluminum
- Front Suspension Size (in):

  1.5
- Front Suspension Size (mm):

  37
WHEELS & TIRES

add remove
- Wheels:

  Standard
- Wheels Composition:

  Aluminum
- Tube / Tubeless:

  Tubeless
- Front Wheel Width (in):

  3
- Rear Wheel Width (in):

  4.5
- Tires:

  Standard
- Front Tire Width:

  120
- Front Tire Aspect Ratio:

  70
- Front Wheel Diameter:

  19
- Rear Tire Width:

  170
- Rear Tire Aspect Ratio:

  60
- Rear Wheel Diameter:

  17
- Front Tire (Full Spec):

  120/70 R19
- Rear Tire (Full Spec):

  170/60 R17
- Spare Tire:

  Not Available
- Other Wheels & Tires:

  Not Available
- Chromed:

  No
BRAKES

add remove
- Brakes:

  Standard
- Front Brake Type:

  Dual Hydraulic Disc
- Front Brake Diameter (in):

  12
- Front Brake Diameter (mm):

  305
- Rear Brake Type:

  Hydraulic Disc
- Rear Brake Diameter (in):

  10.9
- Rear Brake Diameter (mm):

  276
- Anti-Lock Brakes:

  Standard
- Linked Brake System Front to Rear:

  Standard
- Regenerative Braking:

  Not Available
- Regenerative Deceleration:

  Not Available
- Brake Brand Name:

  Brembo® Monobloc
- Other Brakes:

  Not Available
AUDIO & COMMUNICATION

add remove
- Radio:

  Not Available
- Speakers:

  Not Available
- Cassette Player:

  Not Available
- CD Player:

  Not Available
- CB Radio:

  Not Available
- Intercom:

  Not Available
- Headset:

  Not Available
- Other Audio & Communication:

  Not Available
COMMENTS

add remove
- Comment:

  Standard
- Previous Model Year Accessories:

  Yes
