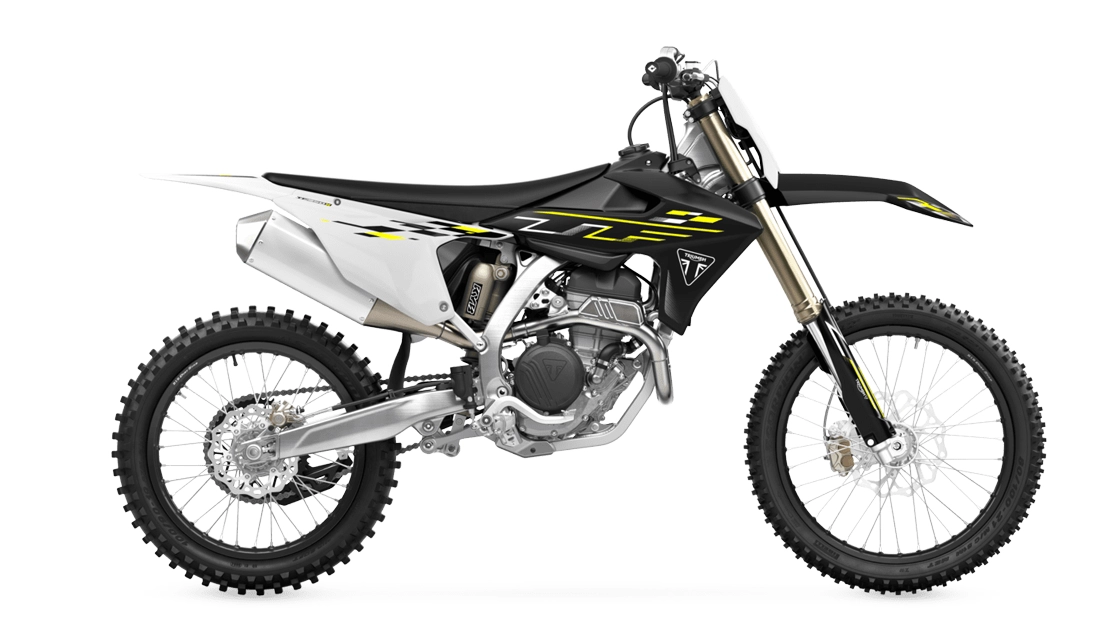

2026 TF 250-X

Description

Pure. Focused. Performance.

CLASS-LEADING POWER TO WEIGHT

47.3 PS peak power at 13,250rpm

INDUSTRY LEADING KYB SUSPENSION

Industry leading damping out of the box

PERFORMANCE TECH

Launch control, traction control, quickshifter, dual engine maps

RACE-DEVELOPED CHASSIS

Lightweight aluminium frame and linkage tuned for control

Disclaimer: Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

Specifications

Engine & Transmission

add remove
- Engine Type

  Single Cylinder, 4-stroke, DOHC
- Capacity

  249.95 cc
- Bore

  3.1 in
- Stroke

  0.1 in
- Compression

  14.4
- Max Power

  35.3 kW / 13,250 rpm
- Max Torque

  20.9 ft-lb / 9,250 rpm
- System

  Dell’Orto throttle body, Athena EMS
- Exhaust

  Single silencer
- Final Drive

  Chain, 13T/48T
- Clutch

  Wet, multi-plate, spring (Belleville)
- Gearbox

  5-Speed
Chassis

add remove
- Frame

  Spine and double cradle, aluminum
- Swingarm

  Aluminum fabrication
- Front Wheel

  21” x 1.6”
- Rear Wheel

  19” x 1.85”
- Front Tyre

  80/100-21
- Rear Tyre

  100/90-19
- Front Suspension

  KYB 48 mm coil spring fork, compression and rebound adjustment, 310 mm wheel travel
- Rear Suspension

  KYB coil, compression adjustment (high and low speed), rebound adjustment, 305 mm wheel travel
- Front Brake

  Twin, 260 mm disc, Brembo, twin-piston floating caliper (2 x 24 mm pistons)
- Rear Brake

  Single, 220 mm disc, Brembo, 26 mm single-piston floating caliper
- Instrument Display and Functions

  Hour meter, multi-function switch cubes
Dimensions & Weights

add remove
- Width Handlebars

  32.6 in
- Height Without Mirror

  49.5 in
- Seat Height

  37.4 in
- Wheelbase

  58.2 in
- Rake

  27.4 °
- Trail

  4.5 in
- Tank Capacity

  2.1 gal
- Wet Weight

  229.3 lb
Color options

add remove
- Jet Black / Pure White
