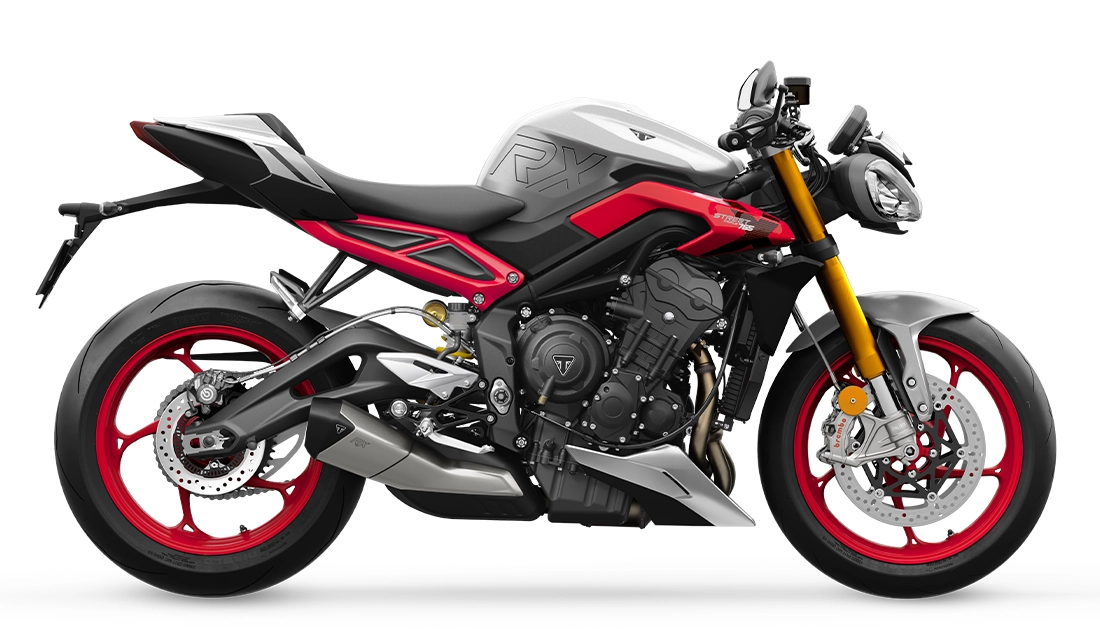

2026 Street Triple 765 RX

Description

The ultimate track variant

ULTIMATE TRACK PERFORMANCE

Category leading power from the same 765cc Triple that powers the Moto2™ grid giving you responsive, faster acceleration for ultimate track performance.

PRECISION HANDLING

Equipped with fully adjustable Öhlins NIX Upside Down Forks and STX40 RSU, clip-on handlebars and race ready components for precise handling.

ICONIC STREET TRIPLE DESIGN

The signature Street Triple design gets the RX treatment with a striking and sporty livery with bold RX branding.

THE ULTIMATE PACKAGE

Race ready technology with designated track modes and ride enhancing specification combine for the ultimate performance focused package.

Disclaimer: Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

Specifications

Engine & Transmission

add remove
- Engine Type

  Liquid-cooled, inline 3-cylinder, 12 valve, DOHC
- Capacity

  765 cc
- Bore

  3.1 in
- Stroke

  2.1 in
- Compression

  13.25:1
- Max Power

  95.6 kW / 12000 rpm
- Max Torque

  59 ft-lb / 9500 rpm
- System

  Multipoint, sequential electronic fuel injection with electronic throttle control
- Exhaust

  Stainless steel 3 into 1 header system with low single sided stainless steel silencer
- Final Drive

  X-ring chain
- Clutch

  Wet, multi-plate, slip and assist
- Gearbox

  6 Speed
Chassis

add remove
- Frame

  Aluminium beam twin-spar frame, 2 piece high pressure die cast rear subframe
- Swingarm

  Twin-sided, cast aluminium alloy
- Front Wheel

  Cast aluminium alloy 5 spoke, 17 x 3.5 in
- Rear Wheel

  Cast aluminium alloy 5 spoke, 17 x 5.5 in
- Front Tyre

  120/70 ZR 17
- Rear Tyre

  180/55 ZR 17
- Front Suspension

  Öhlins NIX30, adjustable compression and rebound damping, and preload adjustment. 115 mm wheel travel
- Rear Suspension

  Öhlins STX40 piggyback reservoir monoshock, adjustable compression and rebound damping, and preload adjustment. 131.2 mm wheel travel
- Front Brake

  Twin, 310 mm floating discs, Brembo Stylema 4-piston radial monobloc calipers, OCABS, Brembo MCS radial master cylinder
- Rear Brake

  Single, 220 mm disc, Brembo single piston caliper, OCABS
- Instrument Display and Functions

  5-inch, TFT, full colour
Dimensions & Weights

add remove
- Width Handlebars

  30.1 in
- Height Without Mirror

  41.4 in
- Seat Height

  33 in
- Wheelbase

  55 in
- Rake

  23 °
- Trail

  3.8 in
- Tank Capacity

  4 gal
- Wet Weight

  188 kg
Fuel Consumption

add remove
- Fuel Consumption

  5.2 l/100km
Color options

add remove
- Matt Aluminium
